SDC Ship Design & Consult GmbH 2007

7.300 DWT ConRo

 SDC1602
  - -





Main particulars:
Length overall: 145.00 m
Breadth moulded: 22.00 m
Design draught: 6.00 m
Deadweight: 7300 t
Service speed: 16.20 kn
Cruising range: 9000 nm

Class sign:
GL + 100 A5 E "RoRo Vessel", "Equipped for carriage
        of containers",  IW, BWM, SOLAS II-2 Reg. 19
     + MC E Aut

Features:
  • Significant Ship of 2007
  • More than 1500 lane m
  • Up to 500 TEU
  • All container positions for CPC wide-bodies
  • 125 reefer plugs
Scope of work:
  • Concept Design
  • Basic Design
3 vessels build at MAWEI shipyard / China

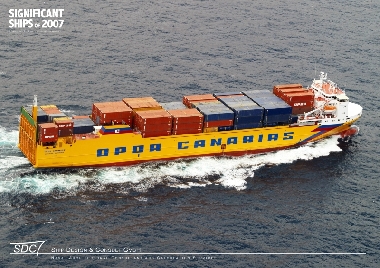

MV "OPDR Canarias"
MV "OPDR Andalucia"
MV "Clara del Mar"
