SDC Ship Design & Consult GmbH 2006

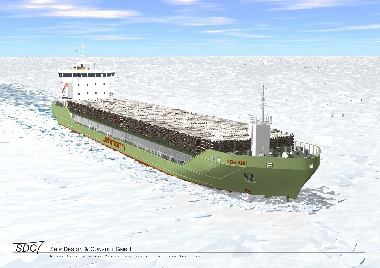

6.500 DWT MPC

 SDC1824
  - -





Main particulars:
Length overall: appr. 115.20 m
Breadth moulded: 16.50 m
Design draught: 5.50 m
Deadweight: 6500 t
Service speed: 13.1 kn
Cruising range: 5500 nm

Class sign:
GL + 100 A5 G E3 Multi-Purpose Dry Cargo Ship,
        "Equipped for the carriage of containers",
         BWM F/S, SOLAS II-2 Reg. 19
     + MC E3 Aut

Features;

  • Capacity up to 342 TEU
  • All cargo holds equipped for dangerous cargo
  • Grain bulkheads can be stowed cargo optimized
  • Ice class E3 (Finn 1A)
  • Optimized hull form for Finn 1A

Scope of work:

  • Basic design

4 vessels are currently under construction
